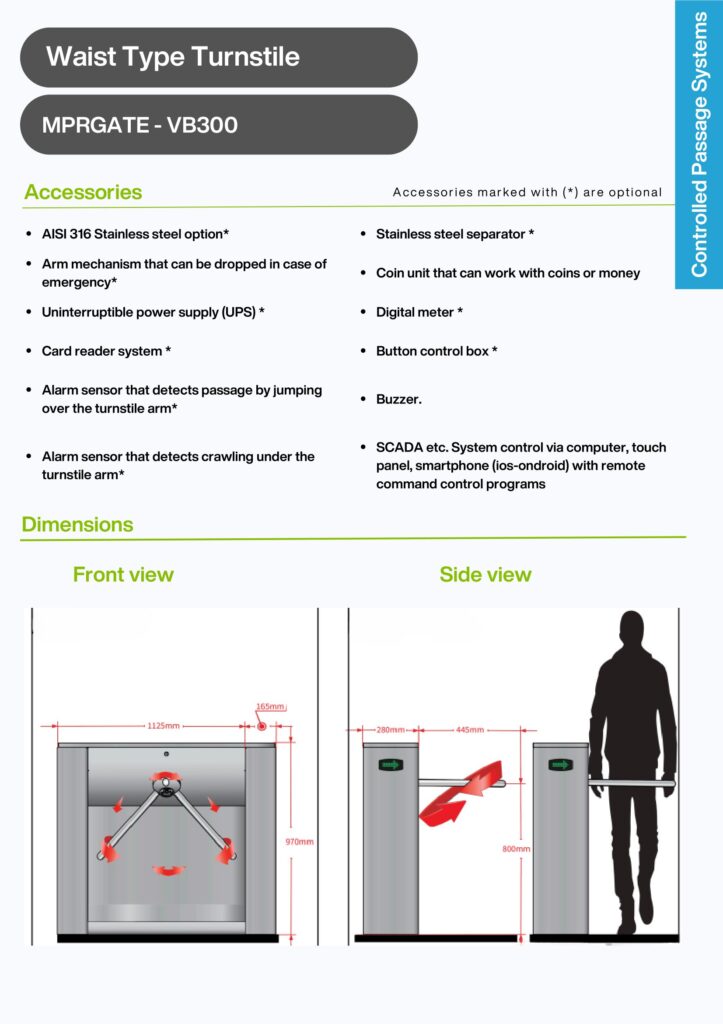

Tripod Turnstile

Details

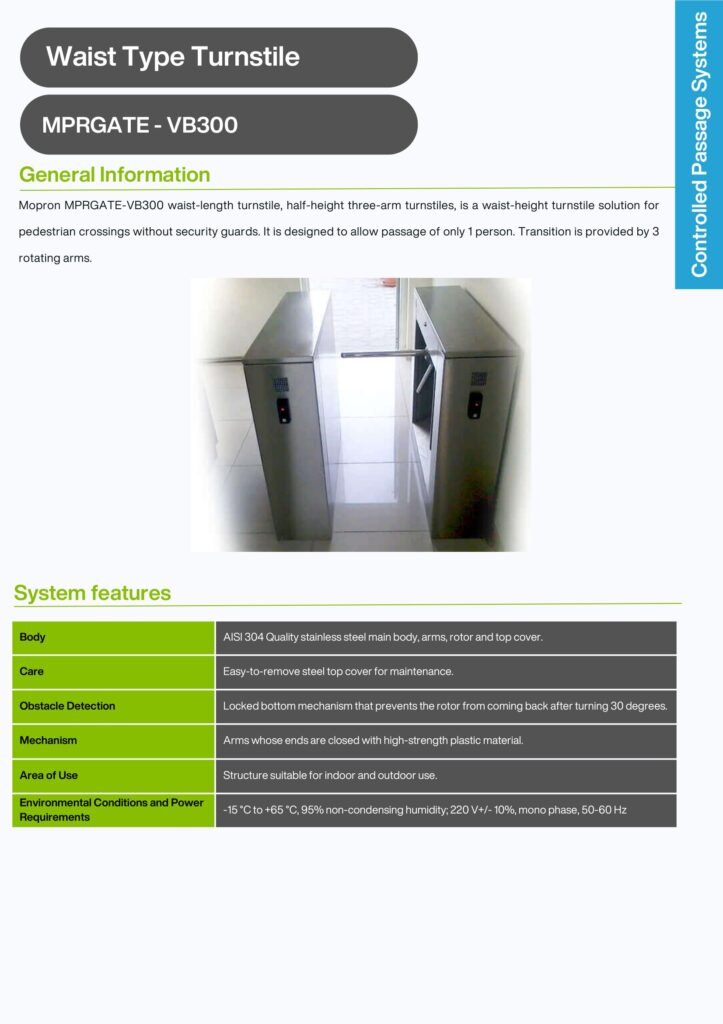

VB series half-height three-arm turnstiles are waist-height turnstile solutions for pedestrian crossings without security guards. It is designed to allow passage of only 1 person. Transition is provided by 3 rotating arms.

Main factors such as modern microelectronic card, mechanism processed on CNC machines, non-contact position sensor technology, adjustable damping ratio with hydraulic damper, automatic centering with cam mechanism and coating of the mechanism against rust ensure that V series turnstiles operate problem-free for many years.

SKU: MPRGATE - VB300 Category:
Weight (approx.)85-125kg
environmental resistanceStainless steel, powder coated (optional)
StructureDesigned for severe conditions
SteelSS304
Power requirement220 Volt, 1 Phase, 50-60 Hz
In case of power outagePassage is free or passage is locked
ButtonOpen direction A, open direction B
Extra I/O in PLCDesired features can be added later
backup power supplyUPS (optional)
environmental conditions-25 °C and +65 °C, 95% humidity
